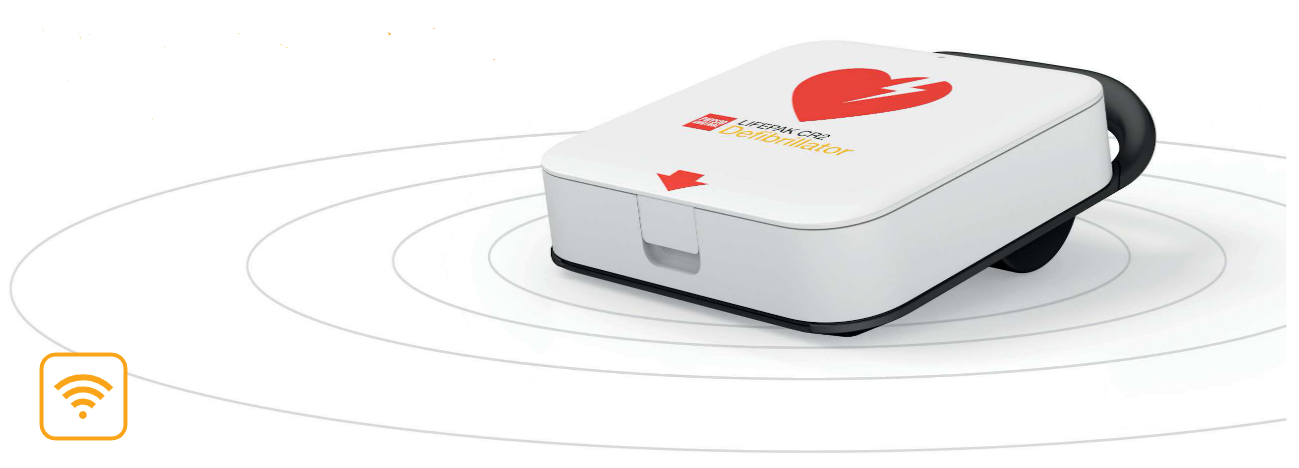

LIFEPAK® CR2 Defibrillator with LIFELINKcentral™ AED Program Manager - Wireless Setup Guide

LIFEPAK ® CR2 Defibrillator with LIFELINKcentral™ AED Program Manager - Wireless Setup Guide

Wireless Setup Overview

A typical wireless setup takes 10-20 minutes.

The following pages will guide you through these steps:

■  Download a software application from a website to your
computer.
■  Run the application on your computer to load Wi-Fi
network settings into the AED.
■  Connect the AED to the wireless network at its intended
location.
■  Confirm the AED status in your online account.

Note: Physio-Control recommends that all LIFEPAK CR2 AEDs
with Wi-Fi capability be set up with a Wi-Fi network, even if the
AED also has cellular capability.



1. Log in to your LIFELINKcentral AED Program Manager account.
2. Download and install the Wi-Fi Configuration Tool to your PC.
3. Run the Wi-Fi Configuration Tool and follow the onscreen instructions.
4. Take the AED to its intended location and test the wireless connection.
5. Confirm the Wi-Fi Connection.
6. Confirm the cellular connection, if applicable.
7. Return to your computer, log in to your account, and verify that the AED is ready.
8. The wireless setup is now complete.
